Draining station Twin Turbo - Mastercool

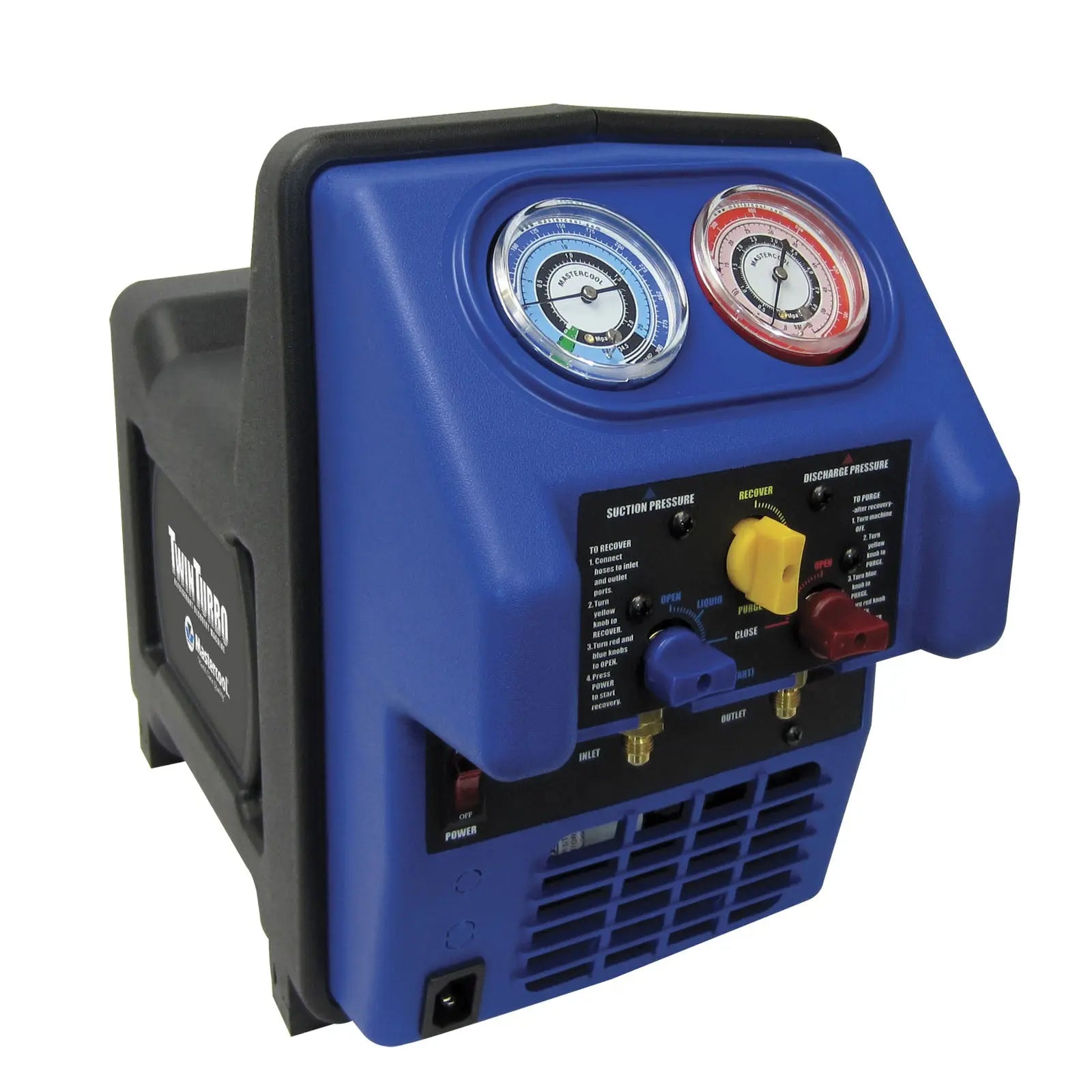

astercool Twin Turbo Refrigerant Recovery System (69300)

The Mastercool 69300 Twin Turbo is a powerful and high-performance refrigerant recovery system , designed for professionals who demand maximum performance, efficiency and reliability. The system is approved for all refrigerants , including A2L flammable refrigerants , and delivers some of the highest recovery rates on the market for HVAC and refrigeration applications.

Superior power, precision and durability

The improved internal design provides high recovery capacity while reducing size and weight. The oil-free twin-piston compressor provides maximum efficiency, while the high-volume cooling fan and condenser ensure optimal cooling so that the compressor can operate stably at high loads.
A safety-based high-pressure switch automatically stops operation in the event of excessive pressure, and a purge valve ensures complete emptying of the condenser and machine. All is encased in a robust, reinforced plastic enclosure, designed for demanding working environments in residential, commercial and industrial use.

Features

• Automatic high-pressure cut-off for maximum safety

• Double piston oil-free compressor – high performance with reduced size and weight

• High-volume cooling fan for stable operation in high temperatures

• Very high recycling capacity – among the best on the market

• Compatible with all refrigerants : CFC, HCFC, HFC and A2L

• Durable and portable HDPE enclosure with integrated bumpers

• Sealed crankcase eliminates refrigerant loss during recovery

Technical specifications

• Voltage: 115V / 60Hz

• Compressor: ½ HP double piston, oil-free

• Operating temperature: 0 to +50 °C

• Material: High-density polyethylene (HDPE) hard plastic

• Compatible refrigerants:

  • All CFCs, HCFCs and HFCs

  • A2L flammable refrigerants

Recycling capacity

R22

• Direct steam: up to 0.63 lb/min

• Direct liquid: up to 7.56 lb/min

• Push-pull: up to 18.3 lb/min

R410A

• Direct steam: up to 0.70 lb/min

• Direct liquid: up to 7.7 lb/min

• Push-pull: up to 20.2 lb/min
