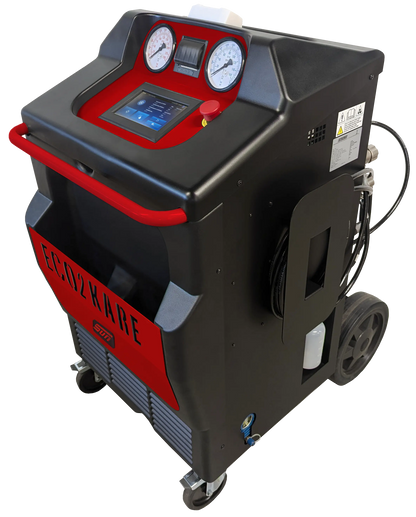

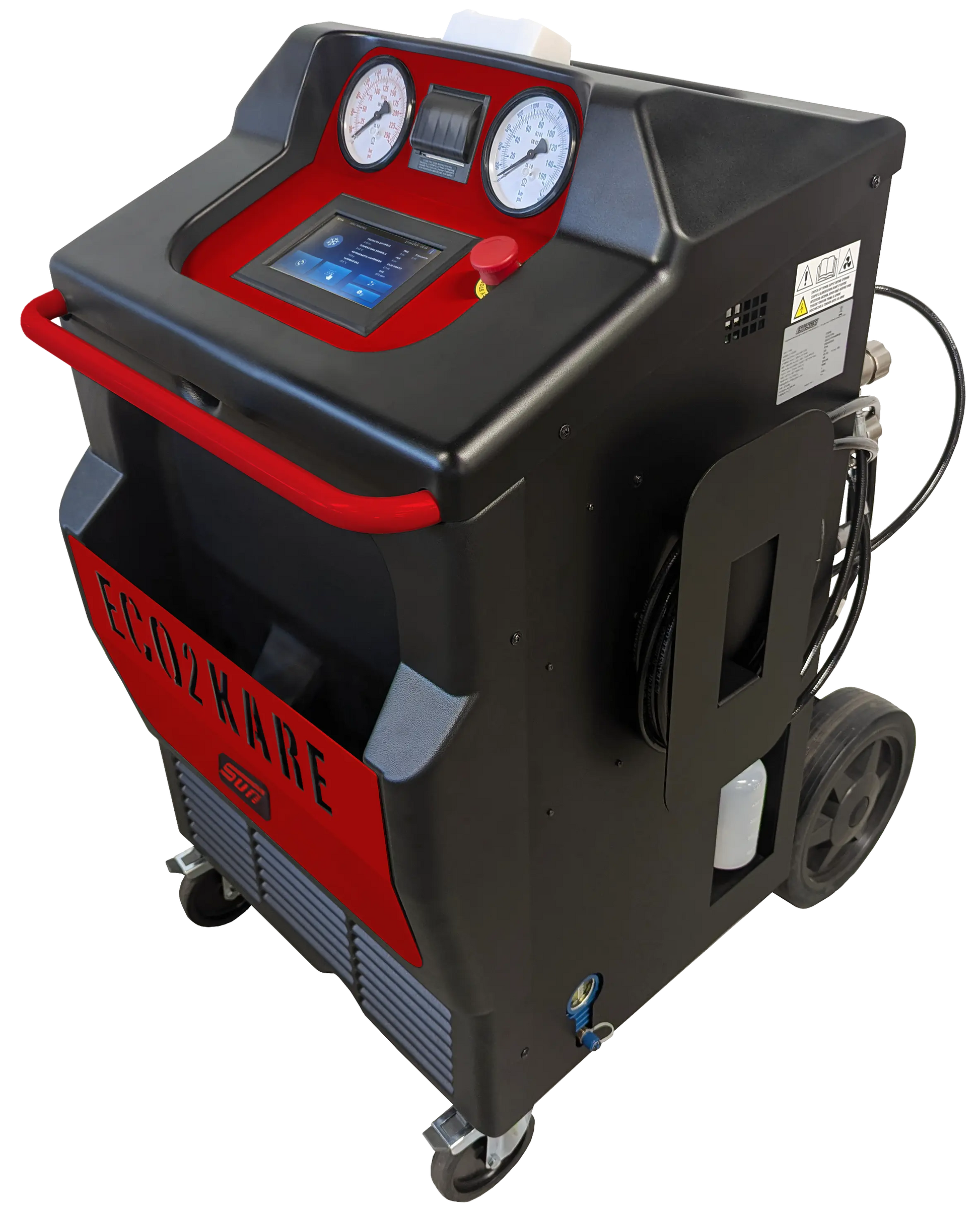

R744 (CO2) AC Filling Station

Fully automatic air conditioning service for draining, servicing and filling R744 systems

• Easy, fast and highly intuitive navigation on a 7" touchscreen.

• The navigation is very user-friendly with images, icons, short texts and a virtual keyboard.

• Absolutely safe: Software-controlled processes contain all necessary control instructions and continuous monitoring of the CO₂ concentration in the environment

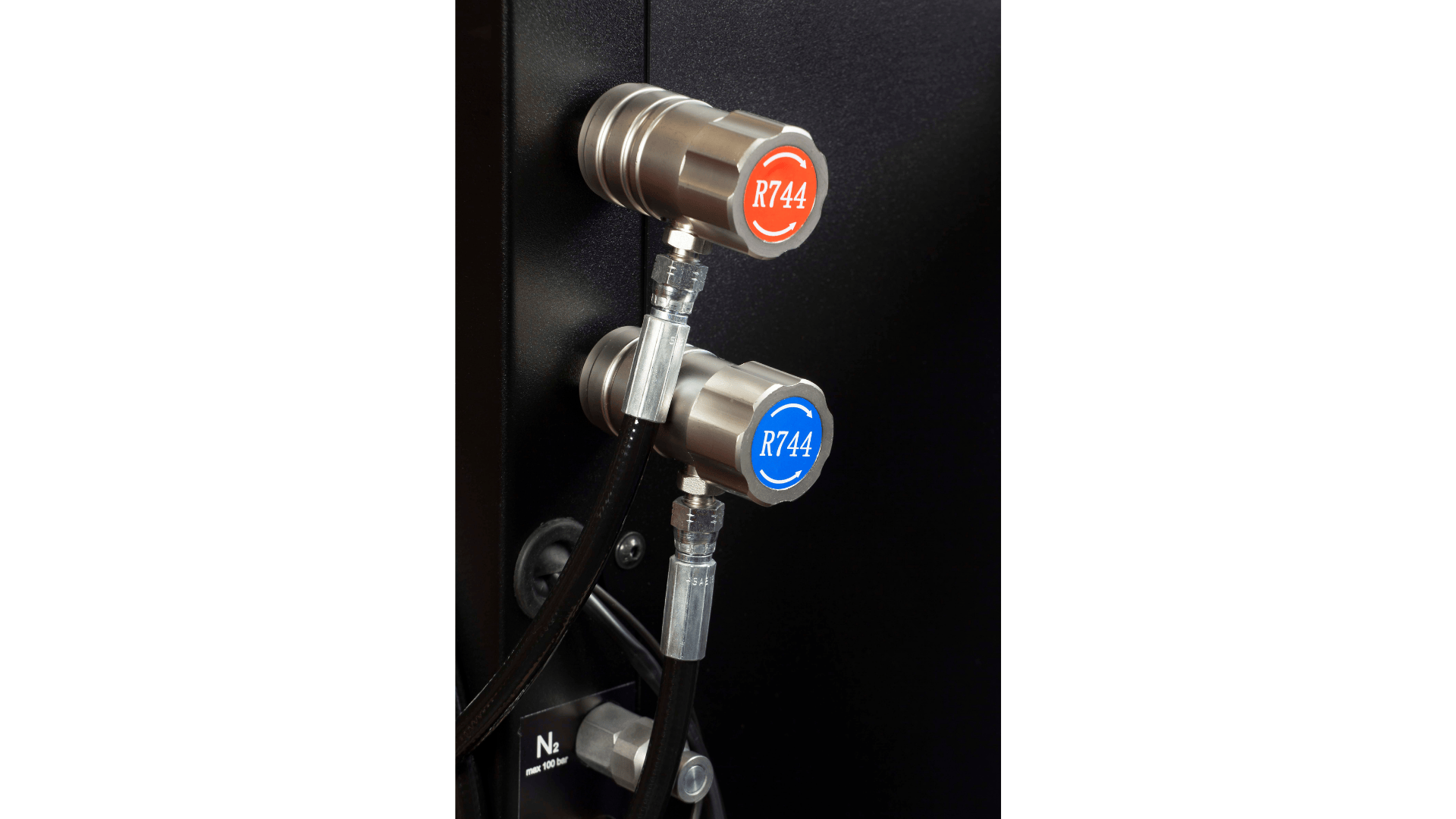

• Integrated hybrid function for flushing service hoses and internal circuits – essential for safe servicing of systems with electric compressors

• Very powerful 142 l/min two-stage vacuum pump ensures a highly efficient vacuum phase for drying the system – especially important for CO₂ systems

• Heating system with manual setting for faster heating for faster filling and time saving

• Handling of three high-quality, hermetic and refillable containers for compressor oil (1x PAG and 1x POE) and tracer (included in delivery)

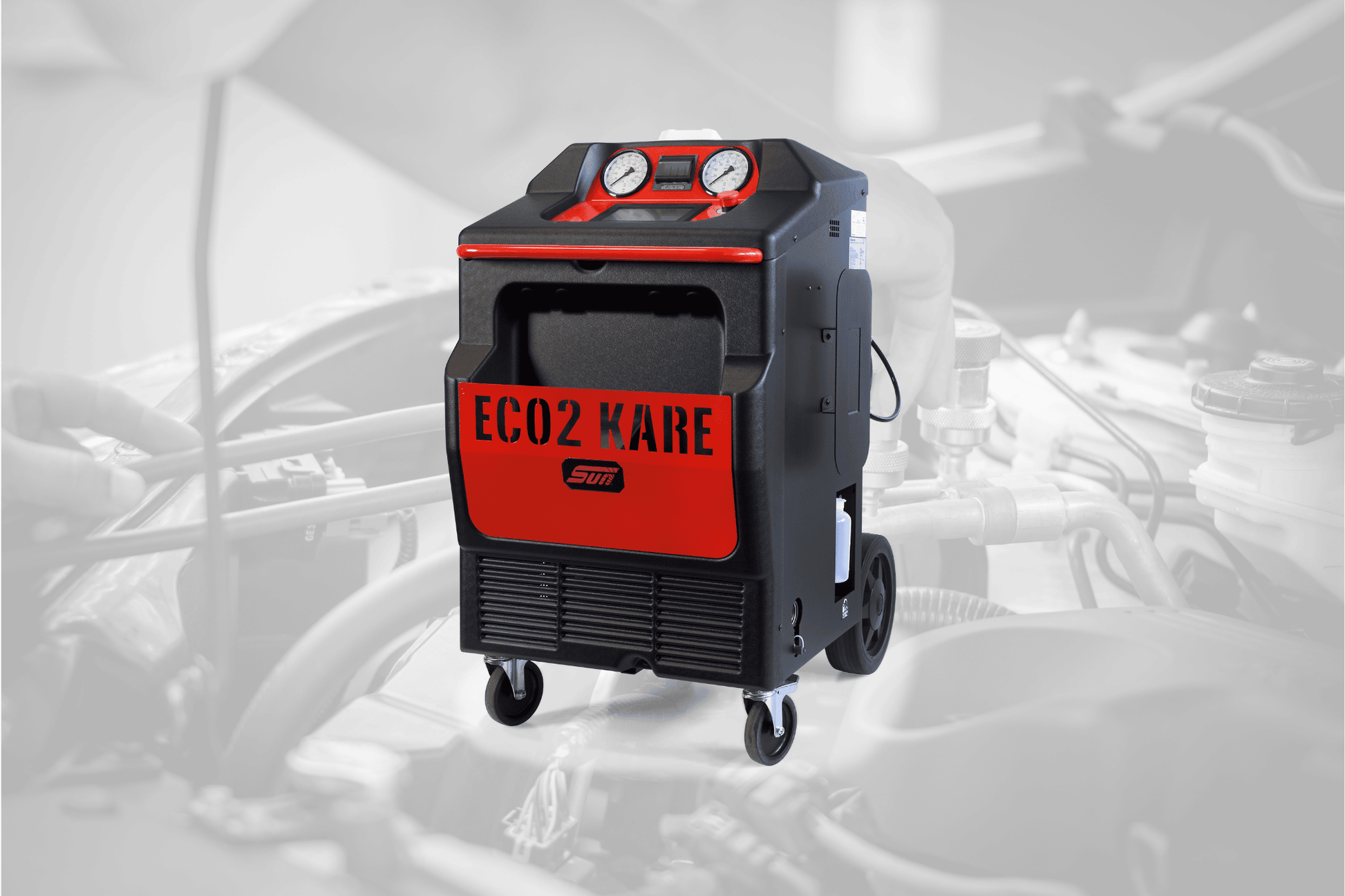

Sun R744 Solution introduces the new ECO₂CARE air conditioning station designed for the growing need for service and repair of R744 air conditioning systems in workshops.

The thermodynamics of R744 are fundamentally different from chemical refrigerants, with new requirements for both the air conditioning system and the service equipment. Of particular importance are the very high pressures of up to 130 bar, as well as additional safety measures to avoid increased CO₂ concentration in the vehicle or workshop.

ECO₂CARE has been developed with a focus on precisely these safety and high-pressure requirements.
The device is characterized by high-quality and powerful components, modern standard functions and highly intuitive usability via the 7" touchscreen.

STANDARD EQUIPMENT

• Automatic pressure test with nitrogen or hydrogen/nitrogen mixture

• 3 m service hose for easy connection to the vehicle

• Large pressure gauges (100 mm)

• Status light

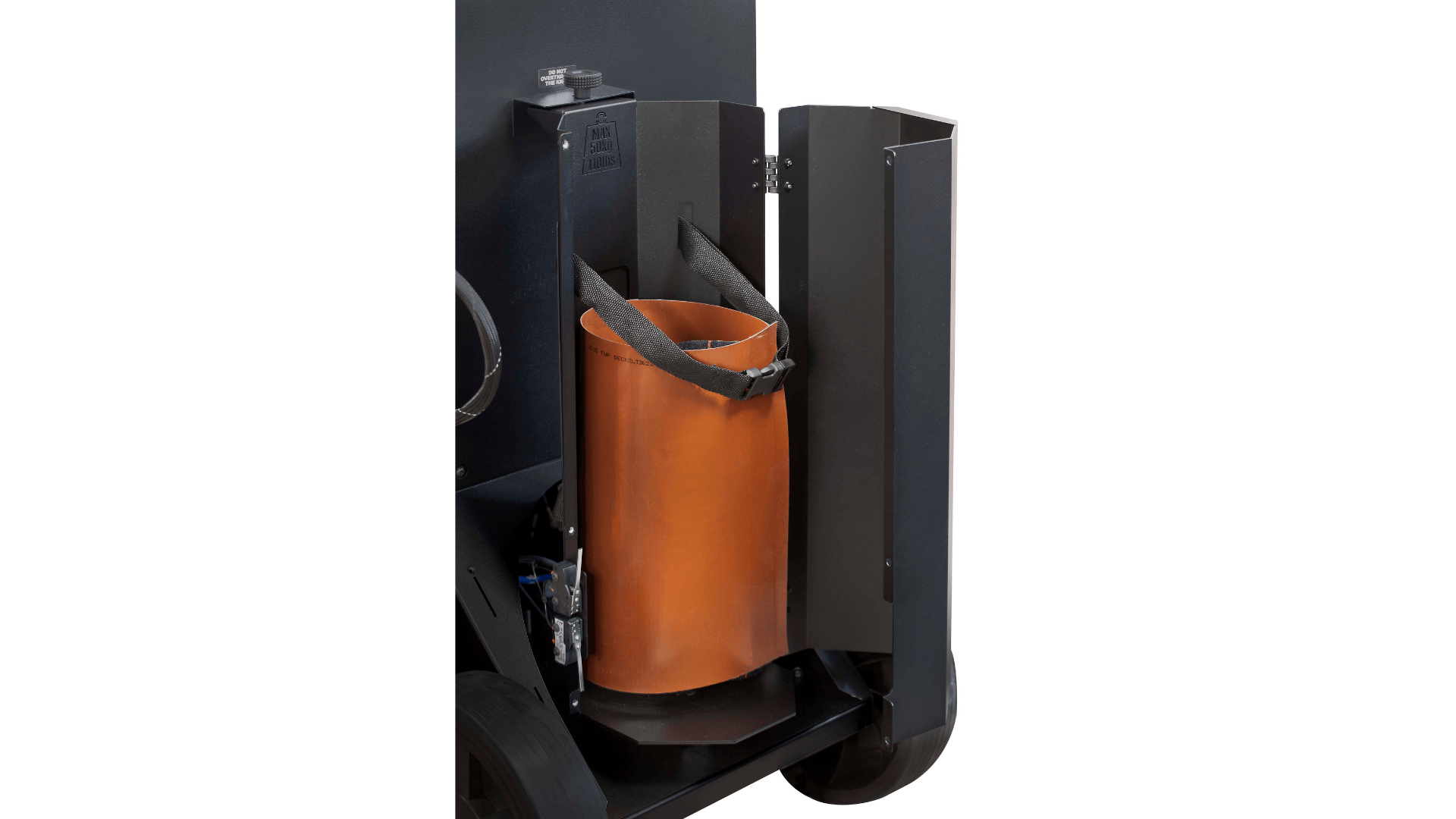

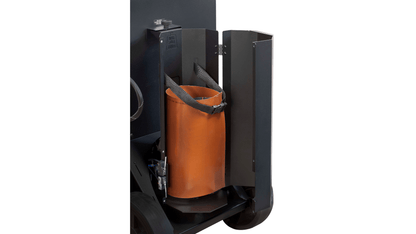

• Easy replacement of R744 cylinders of various sizes, incl. protective cover and Swift safety belt

• Supported bottle types: Gross weight up to 50 kg, capacity 1–22.6 kg, height 35–120 cm, diameter 10–21 cm

• Connection to bottle: 1 m hose, adapter RAC8164 W21 7×1/14" – 1/4" SAE male, adapter RAC8165 W21 8×1/14" – 1/4" SAE male

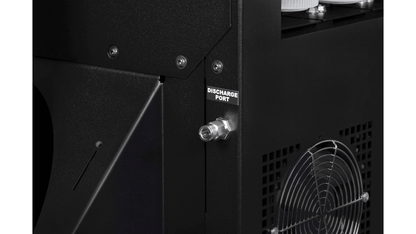

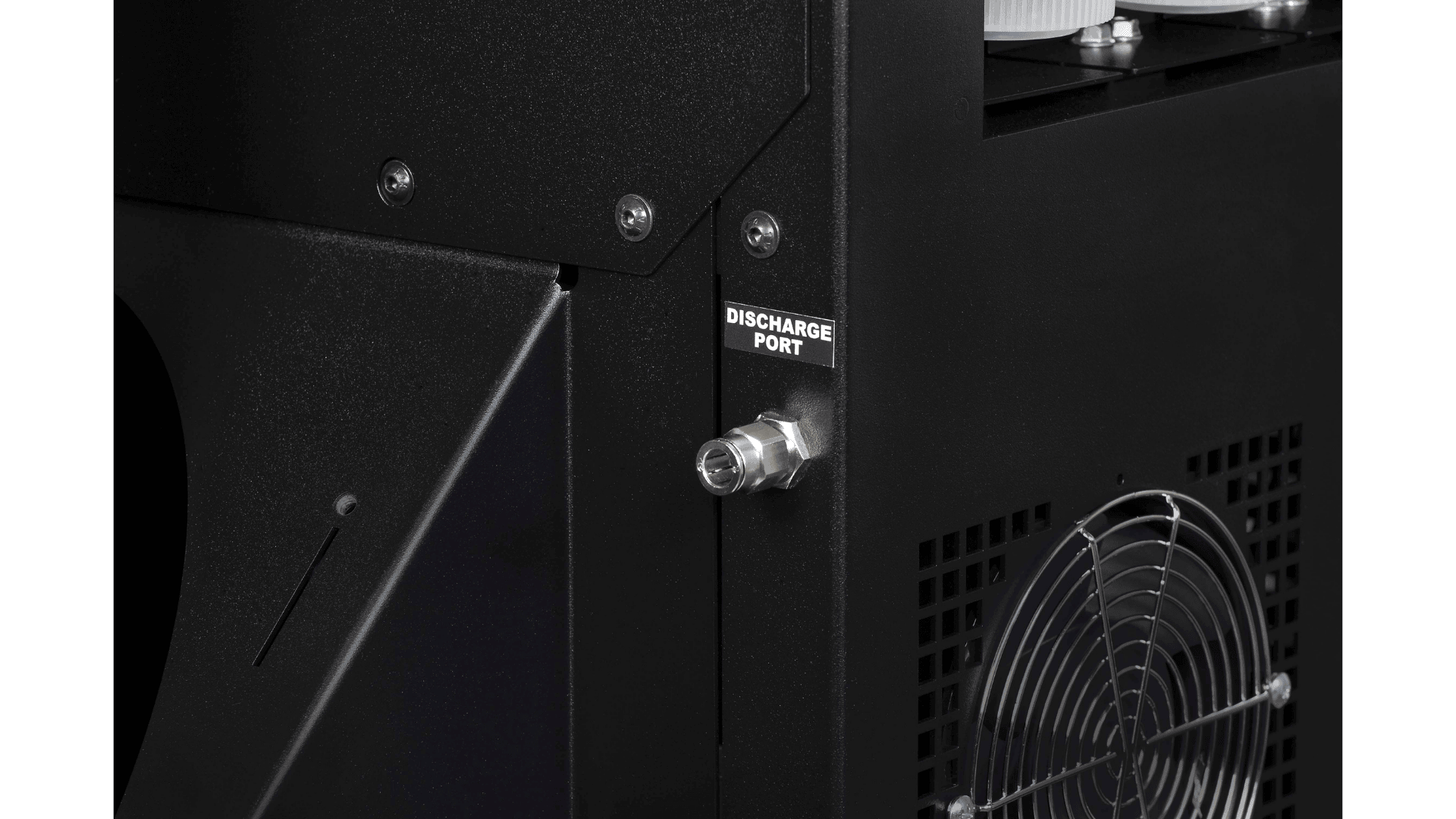

• Quick coupling for CO₂ vent hose (PA12 8×10 mm, TUB1259)

• Effective internal ventilation to prevent ice formation on internal components

• Online update via USB interface or direct Wi-Fi

• Spacious storage compartment for accessories

• Very service-friendly

• Robust construction for maximum drive protection

Contact us for a price quote.

We also offer leasing solutions from NOK 1,504 per month .
