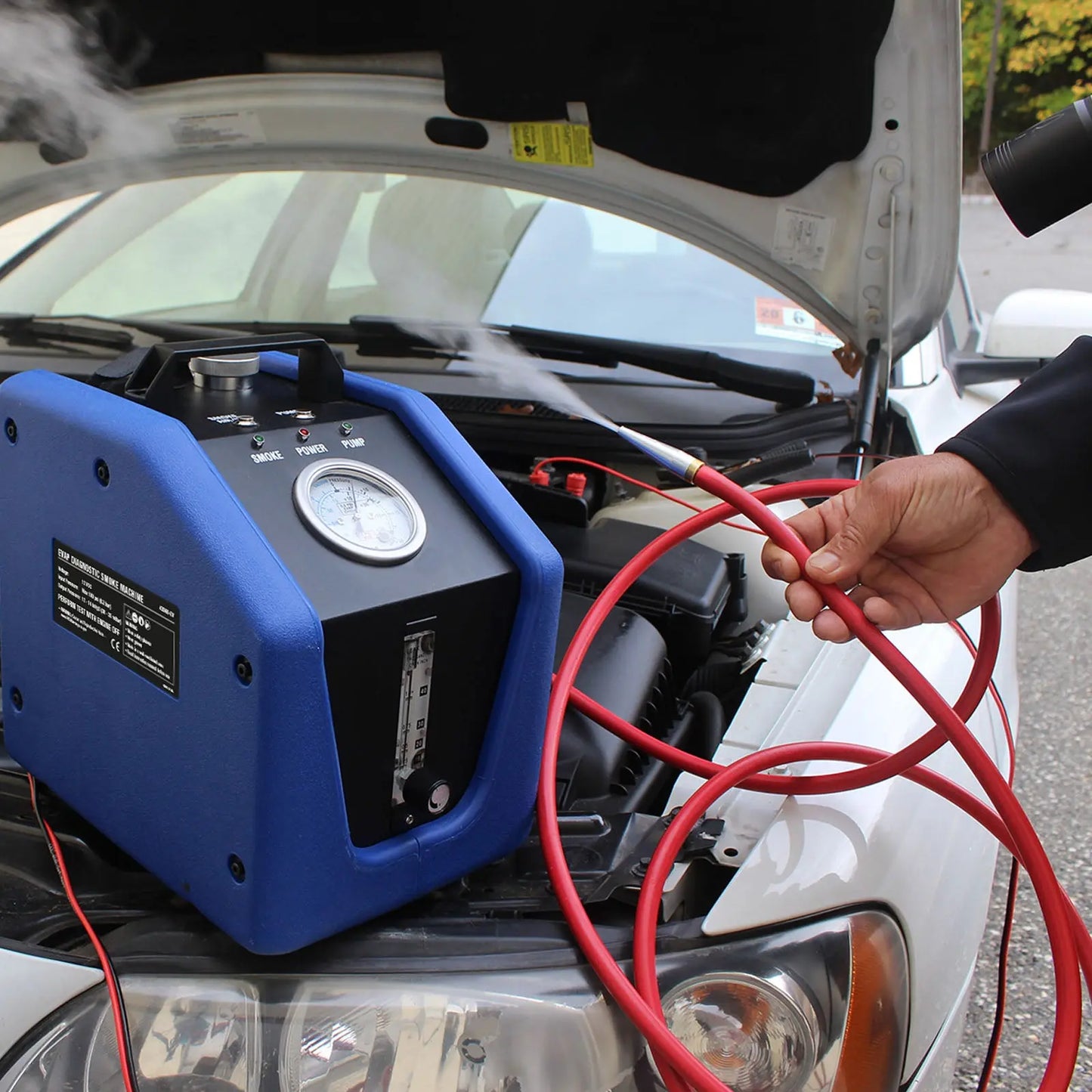

Mastercool EVAP Diagnostic Smoke Machine (43060-EV)

Mastercool 43060-EV is an advanced diagnostic smoke machine designed for professional leak detection in EVAP systems, intake, exhaust, vacuum hoses and vacuum components , as well as leaks in the passenger compartment, windows, sunroofs, headlights and taillights and much more.

The unit offers maximum flexibility by being able to use a built-in internal compressor , shop air or inert gas to inject smoke into the system. This makes the machine ideal for both shop and mobile repairs , without the need for external compressed air.

Precise leak diagnosis – even without workshop air

The built-in compressor allows the technician to perform complete diagnostics anywhere. The machine is equipped with an integrated flow meter for leak monitoring and a specially designed pressure instrument (0–30 inH₂O) for recording even minimal pressure changes.

A built-in pressure regulator is factory set to 0.5 PSI , ensuring safe testing of EVAP systems, combined with a safety overpressure valve to protect both vehicle and equipment.

The machine delivers powerful, consistent and non-toxic smoke , and comes complete with a comprehensive accessory kit for professional use.

Features

• Compact and robust construction for long service life

• Several methods of smoke introduction:

  • Built-in compressor

  • Workshop air

  • Inert gas

• Fast smoke production

• Built-in safety pressure relief valve

• Pressure regulated to 0.5 PSI for safe EVAP testing

• Large and easy-to-read pressure gauge: 0–30 inH₂O (70 mbar)

• Removable and easy-to-clean flow meter

• Non-toxic and non-corrosive fumes

• 10' (3 m) 12 V power cables with heavy duty clamps

• Heavy duty 10' (3 m) smoke exhaust hose

• Velcro for storing hose and cable

• Powerful battery-powered smoke lantern with telescopic light beam

Package contents

• EVAP diagnostic smoke machine

• Complete set of block plugs

• Exhaust/diagnostic cone

• EVAP Schrader valve tool (out/in)

• EVAP service port adapter hose (green cap)

• Powerful smoke lantern (battery operated)

• 8 oz (approx. 240 ml) of smoke liquid (enough for hundreds of tests)

• 10' power cord for connection to vehicle battery

Technical specifications

• Voltage: 12V DC

• Inlet pressure: Max 100 psi (7 bar)

• Output pressure: 12–14 inH₂O (30–35 mbar)

• Safety overpressure: 120 psi (±5 psi)

• Automatic shut-off: 5 minutes

• Oil fill indicator: 100 ml (±10 ml)

• Flow Meter: 0–0.040 in (0–1.0 mm)

• Power consumption: Max 6.5 A

• Operating temperature: −17 °C to +60 °C

• Operating humidity: No restrictions

• Operating altitude: No restrictions

• Smoke exhaust hose: 10 ft (3 m)

• Power cable: 10 ft (3 m)

• Pressure supply: Air / inert gas / internal pump

• Dimensions: 300 × 205 × 280 mm

• Weight:

  • Net: 5.4 kg

  • Shipping weight: 9 kg

Available accessories

• 43060-OL – 8 oz bottle of smoke liquid
