Electronic scale for AC charging - Mastercool

Electronic AC filling scale with Bluetooth®

Certified electronic AC charging scale from Mastercool, approved according to OIML and CE , and Legal for Trade . Developed for precise and reliable AC charging of refrigerants in both automotive and HVAC service.

Product description

The Mastercool 98211-B is a professional electronic AC filling scale with Class III accuracy and an extra large LCD display that provides good readability from all angles. With built-in Bluetooth® technology , the scale can be connected to the Mastercool Connect app , allowing AC filling to be monitored in real time via compatible smartphones and tablets.

The scale has a robust aluminum base and a durable, non-slip platform, making it suitable for use in demanding workshop and field environments. It comes with a compact and sturdy carrying case for easy and safe transport between jobsites.

Features

• Programmable AC refill
  Set the desired amount of refrigerant. Warning/alarm is activated before charging is complete so that the supply can be stopped in time.

• Pause/Resume AC Refill (requires 98230 solenoid module)
  Allows you to stop and continue AC refilling as needed.

• Tank capacity programming (Empty / Full)
  Shows at all times how much refrigerant is left in the tank.

• Repeat function
  Allows you to repeat a previously saved fill quantity.

Technical specifications

• Accuracy class: Class III

• Max capacity: 110 kg

• Min. capacity: 400 g

• Resolution:
  – 20 g up to 55 kg
  – 50 g from 55–110 kg

• Temperature range: 0 °C to 40 °C

• Power supply: 9 V battery

• Optional power supply: 9 V DC plug-in

• Battery life: approximately 40 hours

• Automatic shut-off: 3 hours

• Platform: 22 × 22 cm (9″ × 9″)

Bluetooth® specifications

• Range: up to 80 m (line of sight)

• Bluetooth standard: Bluetooth® 4.2 and 5

Mastercool Connect app

The Mastercool Connect app is used exclusively with Mastercool's Bluetooth®-compatible automotive and HVAC service equipment. The app provides full mobility and real-time data display during AC refilling.

• iOS: version 11 or later

• Android: version 6 or later

• App: Free download from the App Store and Google Play

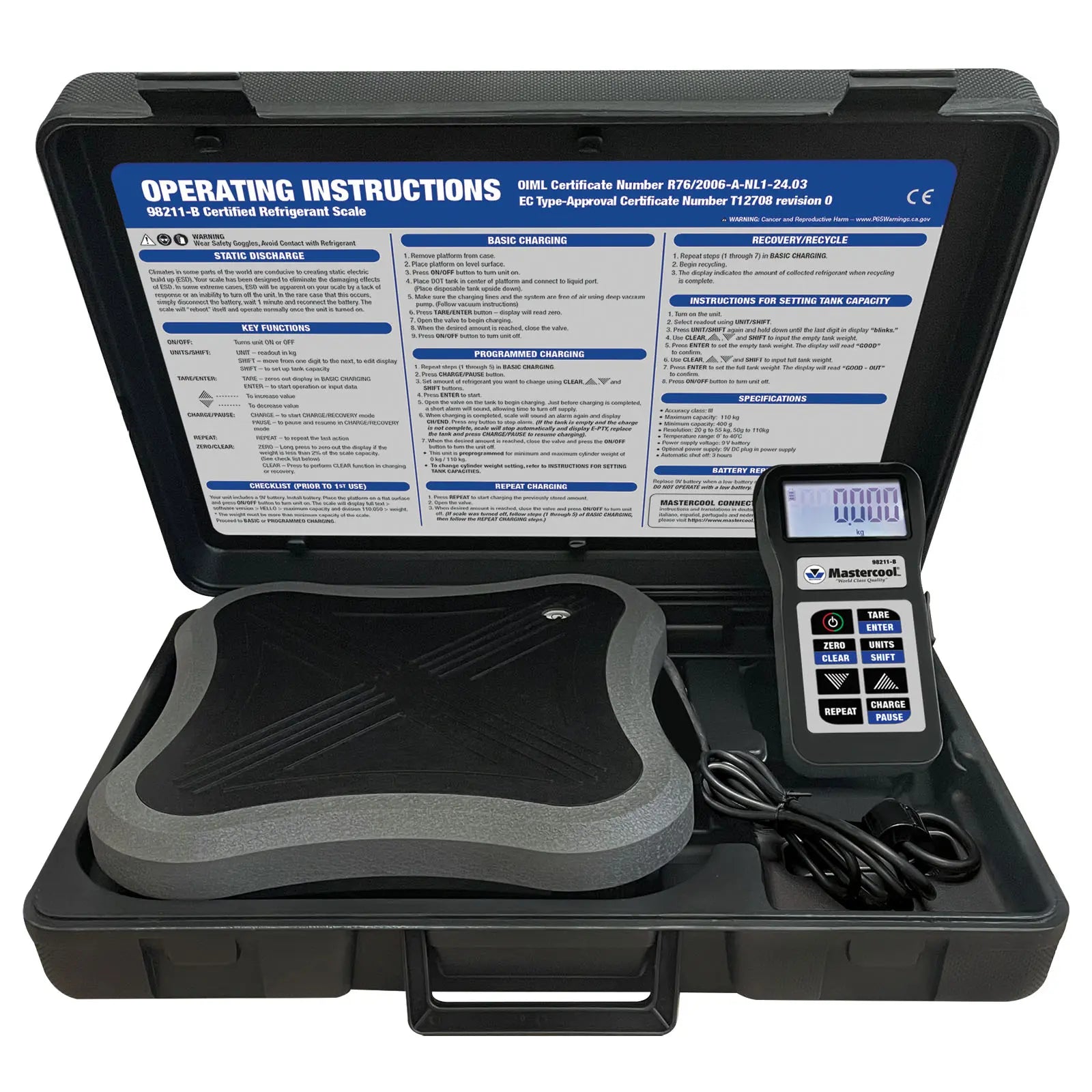

Scope of delivery

• Mastercool 98211-B electronic AC filling scale

• Strong and compact transport case

• User documentation

Application

Suitable for professional use in:

• AC refilling on vehicles

• HVAC installation and service

• Precise filling and control of refrigerants

• Workshops and service vehicles with requirements for certified measuring equipment
