BOCK FKX40/655K - vehicle compressor (R134a / R407C / R513A)

Product description

The BOCK FKX40/655 K is a powerful, open 4-cylinder piston compressor developed for professional vehicle applications in bus and public transport. With a higher displacement than the 560 variant, this model delivers increased cooling capacity, while maintaining BOCK's well-known reliability and long service life.

The compressor is supplied without power regulation and without a motor, and is intended for installation in vehicle-based AC systems with requirements for stable operation over a wide speed range.

Technical specifications

Generally

• Manufacturer: BOCK

• Product group: Open type compressors

• Type: Reciprocating Compressor (Reciprocating)

• Model: FKX40/655 K

• Number of cylinders: 4

• Power regulation: No

• Clutch: No

• Motor: Supplied without motor

• Color: Unpainted

Performance

• Displacement: 650 cm³

• Speed ​​range: 500–3500 rpm

Refrigerants

• R134a

• R407C

• R513A

Oil

• Oil type: BOCKlub E55 (Ester oil)

• Oil press guard: No

• Oil sump heater: No

• https://shop.autoclima.no/products/reniso-triton-se-55-kompressorolje

Connections

• Suction side: Standard, dust cover

• Pressure side: Standard, dust cover

Pressure limits

• Max. high pressure (PS): 28 bar

• Max. low pressure (PS): 19 bar

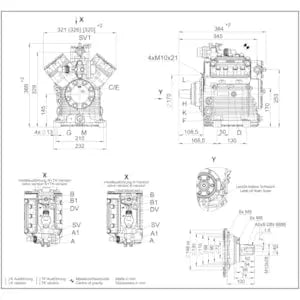

Dimensions and weight

• Length: 384mm

• Width: 326mm

• Total height: 369 mm

• Net weight: 32.4 kg

• Gross weight: 35.3 kg

• Volume (packaging): 187.11 liters

Identification

• BOCK art.no.: 13992

• Legacy BOCK ID: 13992

• EAN: 5715162575123

• Type designation: FKX40/655 K

Application

• Bus and public transport

• Heavy vehicles

• Vehicle-based air conditioners with open compressor
